Steering Components Refresh - Lower BallJoint Boot Replacement

Lower ball joint boots - I feel the top hole could be closer to 17/18mm and bottom hole closer to 32mm.

But overall the RB124K is a pretty good fit, I have been using it for a few years without issue.

Road Safe RB124K is the closest.
Top Hole Diameter  16 mm
Bottom Hole Diameter  34 mm
Height  28 mm

You can also see HR-6137 in the background.


















{another one that should be close to fitting}
RB18K
Top Hole Diameter  15 mm
Bottom Hole Diameter  34 mm
Height  30 mm







I have yet to measure the tie rod boot, it looks similar but, shorter.

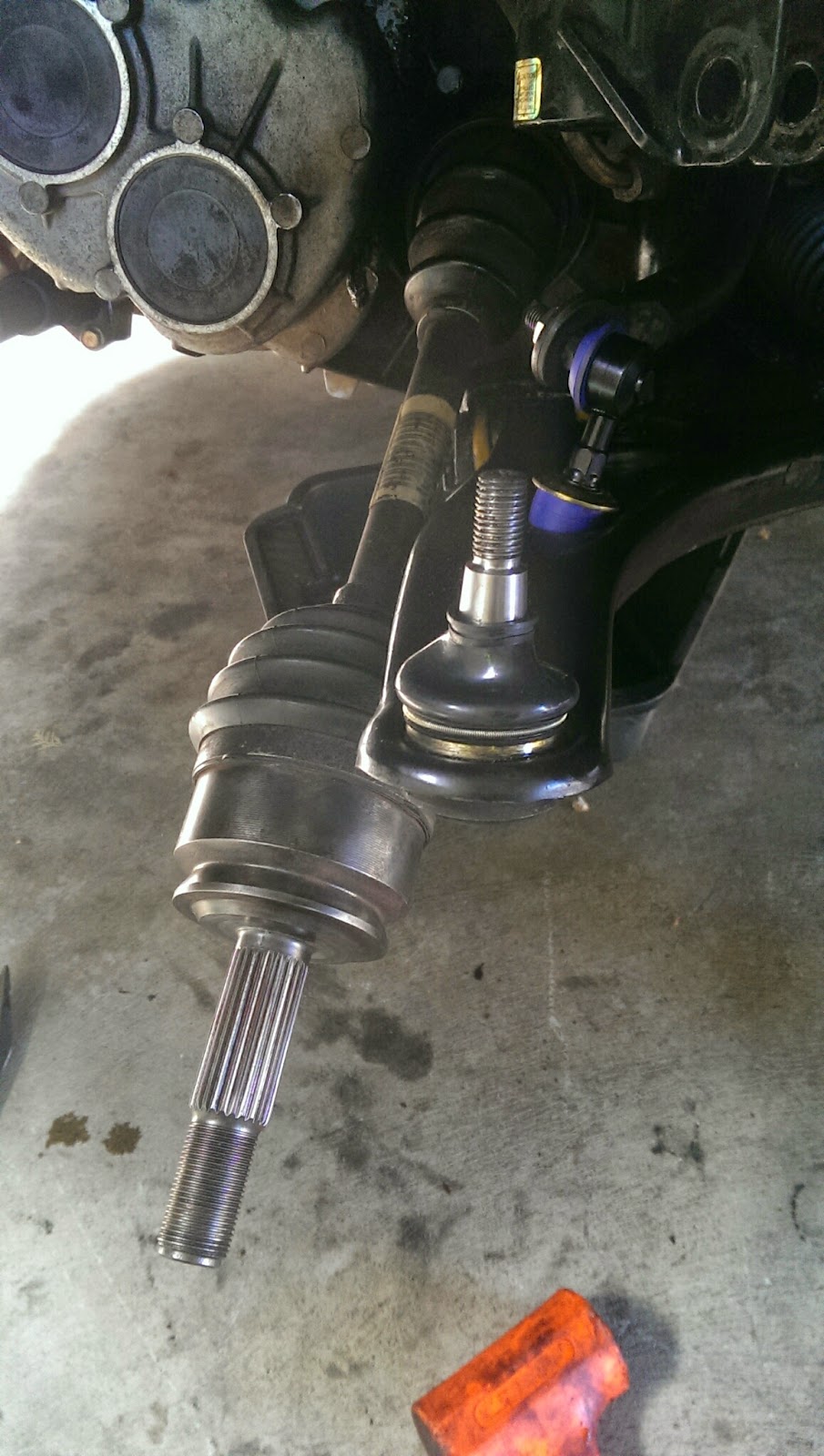

So this car had another driveshaft put in, lower ball joint boots and sway bar linkages.
Its used in Honda's & Lancers, fit is ok, bushing are a bit smaller, but his ends were pretty rooted, otherwise I would have just put bushes on it, not worth the extra $50, it's not a performance upgrade by any means. /4sale-swaybar-linkage-bushes.html



Front Sway Bar Endlinks, Type R sway bar, Civic EG 92-95, Integra DC2 94-01 (see also HR6480)
Hardrace front sway bar end links for EG DC2 with Type R front sway bar
Part Number: HR-6137

Blox Front Sway Bar Fixed End Link Set DC Integra EG Civic -
these fixed end links for front sway bar specifically for the 92-95 Civic / 92-97 Delsol / 94-01 Integra that's utilizing a 24mm GSR or Integra-R front swaybar.
Applications:
92-95 Civic using a 94-01 GSR or Integra-R 24mm front sway bar
92-97 Delsol using a 94-01 GSR or Integra-R 24mm front sway bar
94-01 Integra GSR / 97-01 ITR
Part Number:  BXSS-10106
